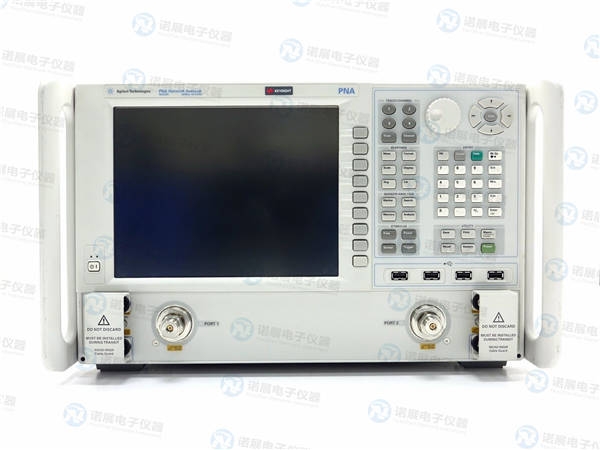

N5224A PNA 微波網絡分析儀，43.5 GHz

N5224A PNA 微波網絡分析儀，43.5 GHz

產品品牌：Keysight

產品型號：N5224A

業務范圍：銷售/租賃/回收/維修/計量

維修周期：1-7天

產品規格

N5224A PNA 微波網絡分析儀，43.5 GHz

提供N5224A PNA 微波網絡分析儀一站式綜合服務，專業高效！

產品描述

N5224A PNA 微波網絡分析儀，43.5 GHz



主要特性和功能

·獲得卓越的測量和設計成果

·PNA 提供出色的測量完整性，可將深入的洞察轉變?yōu)槌錾脑O(shè)計

·使用性能出眾的微波網絡分析儀，應對苛刻的測量挑戰

·是德科技 S 參數測量有很高的精度

·通過個性化配置得到恰當?shù)男阅?，以滿足您特定的預算和測量需求



技術指標

最大頻率

43.5 GHz

動態范圍

127 dB

輸出功率

13 dBm

軌跡噪聲

0.003 dBrms

內置端口數量

2 或 4 端口

諧波

-60 dBc

本底噪聲

-114 dBm

掃描速度最高可達 201 個點

5.5 ms

網絡分析儀系列

PNA 高性能

應用

S 參數

平衡測量

材料

脈沖射頻

元器件

天線

混頻器/變頻器

放大器

臺式

 是



選件

N5224A-200

2 ports, single source, base hardware configuration

N5224A-201

2 ports, single source, with configurable test set

N5224A-210

2 ports, single source, with metrology configuration

N5224A-217

2 ports, single source, configurable test set, extended power range

N5224A-219

2 ports, single source, configurable test set, extended power range, bias-tees

N5224A-400

4 ports, dual source, base hardware configuration

N5224A-401

4 ports, dual source, with configurable test set

N5224A-410

4 ports, dual source, with metrology configuration

N5224A-417

4 ports, dual source, configurable test set, extended power range

N5224A-419

4 ports, dual source, configurable test set, extended power range, bias-tees

N5224A-008

Pulsed RF Measurements

N5224A-010

Time Domain

N5224A-020

Add IF inputs

N5224A-021

Add pulse modulator to internal first source

N5224A-022

Add pulse modulator to internal second source

N5224A-025

Add four internal pulse generators

N5224A-028

Noise figure measurements using standard receivers

N5224A-080

Frequency offset measurements

N5224A-082

Scalar calibrated converter measurements

N5224A-083

Vector and scalar calibrated converter measurements

N5224A-084

Embedded LO measurements

N5224A-086

Gain compression application

N5224A-087

Intermodulation distortion measurements

N5224A-118

Fast CW Mode

N5224A-460

Integrated true-mode stimulus application

N5224A-551

N-port calibrated measurements

N5224A-088

Source phase control

N5224A-089

Differential and I/Q devices application

N5224A-007

Automatic Fixture Removal

N5224A-015

Dynamic Uncertainty for S-Parameter Measurements

N5224A-090

Spectrum Analyzer

N5224A-093

Extended Spectrum Analyzer to 110 GHz

N5224A-094

Extended Spectrum Analyzer above 110 GHz
